   We have many standard ball finials and pier caps available in composite stone, from plain flat and Pyramid pier caps to the more ornate ball finials, we hope there's something for everybody's tastes here but should you need any advice or information you can contact us on 01829 770 632, or you can email us your requirements through the contact link above.

   If you don't see the design in the correct size you may need to start with a larger  plain or moulded pier cap to cover your pier size then you can introduce either a pyramid or a ball finial on top of this to finish it off, we show a few examples of this at the foot of the page.

  All of the products below are available in seven standard stone finishes (composite stone) or colour matched to existing (subject to a minimum quantity)

   you need help please contact us on Tel: 01829 770 632 or fax 01829 770642

 Click products to enlarge the detail

Homepage























































+

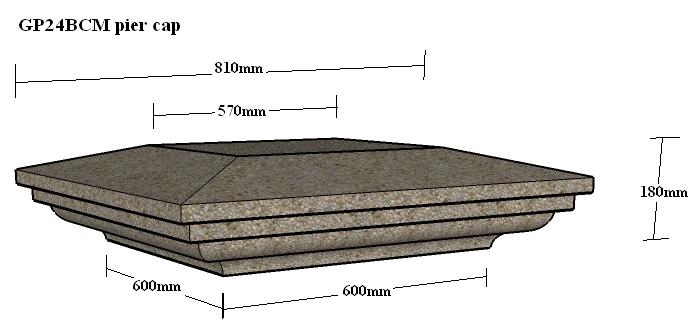

GP24 BCM, 600 x 600mm and is suitable for piers up to 580 x 580mm as the extended moulding to the side detail acts as the weather drip.

　

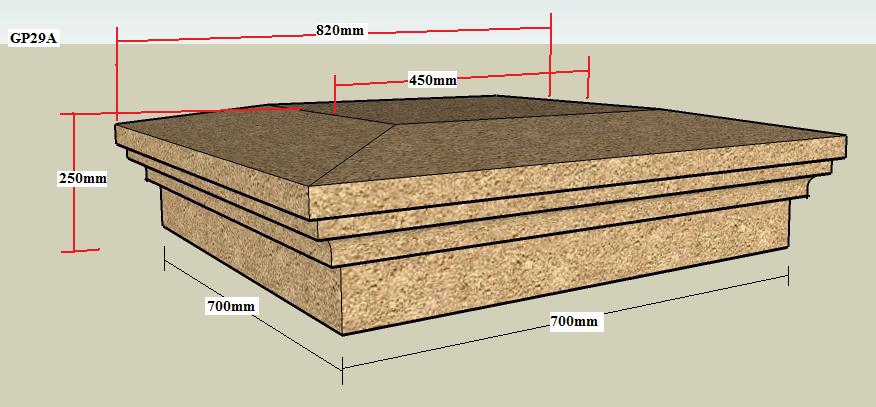

GP 29 A, 700 x 700mm and is suitable for piers up to 680 x 680mm as the extended moulding to the side detail acts as the weather drip.

　

GP 31 BCM, 800 x 800mm and is suitable for piers up to 750 x 750mm, a ball finial or pyramid cap can be added to the top.

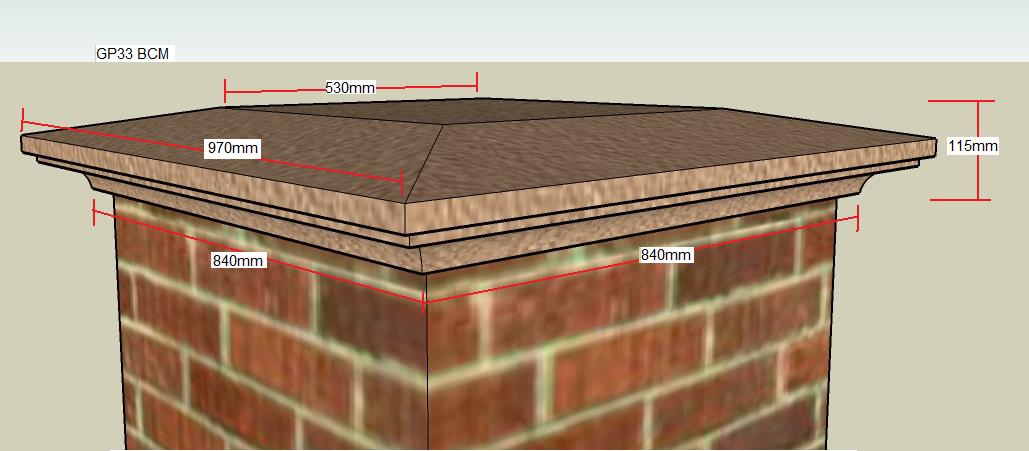

GP33 BCM, 840 x 840mm and is suitable for piers up to 820 x 820mm as the extended moulding to the side detail acts as the weather drip.



                                        Large moulded pier caps





























                                        Photo Gallery

                                         Photo's of pier caps in-situ



                                        Plain pier caps

GP18 BC pier cap, 450mm x 450mm suitable for piers up to 400mm which will allow for a 25mm overhang on each side.

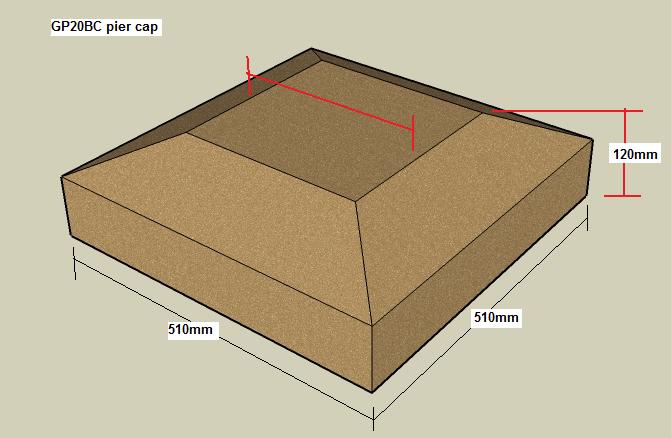

GP20 BC pier cap, 510mm x 510mm suitable for piers up to 460mm which will allow for a 25mm overhang on each side.

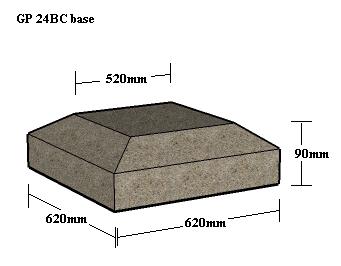

GP24 BC pier cap, 620mm x 620mm suitable for piers up to 570mm which will allow for a 25mm overhang on each side.

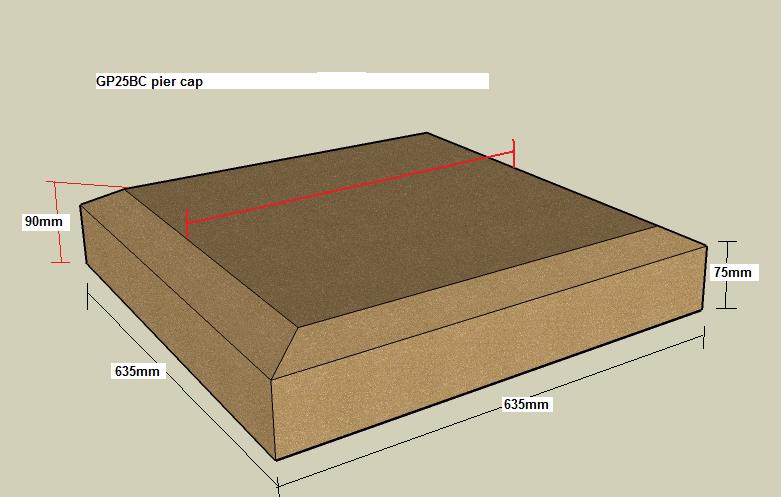

GP25 BC pier cap, 635mm x 635mm suitable for piers up to 585mm which will allow for a 25mm overhang on each side.

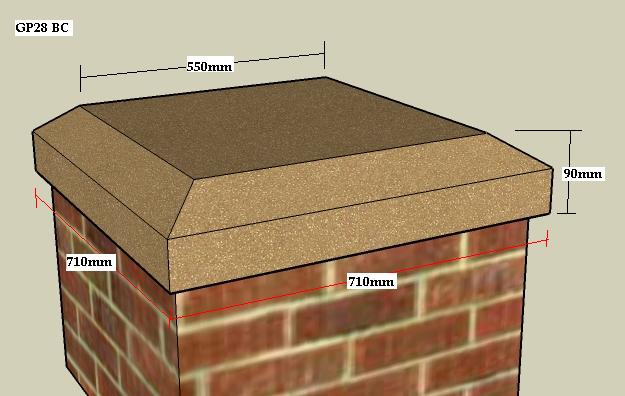

GP28 BC pier cap, 710mm x 710mm suitable for piers up to 660mm which will allow for a 25mm overhang on each side.

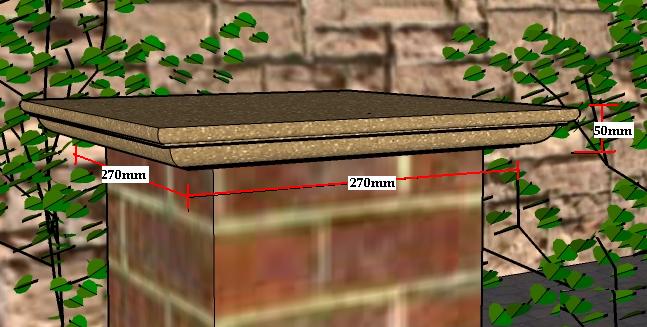

GP10A pier cap, 270mm x 270mm suitable for piers up to 260mm which will allow for a 25mm overhang on each side.

　

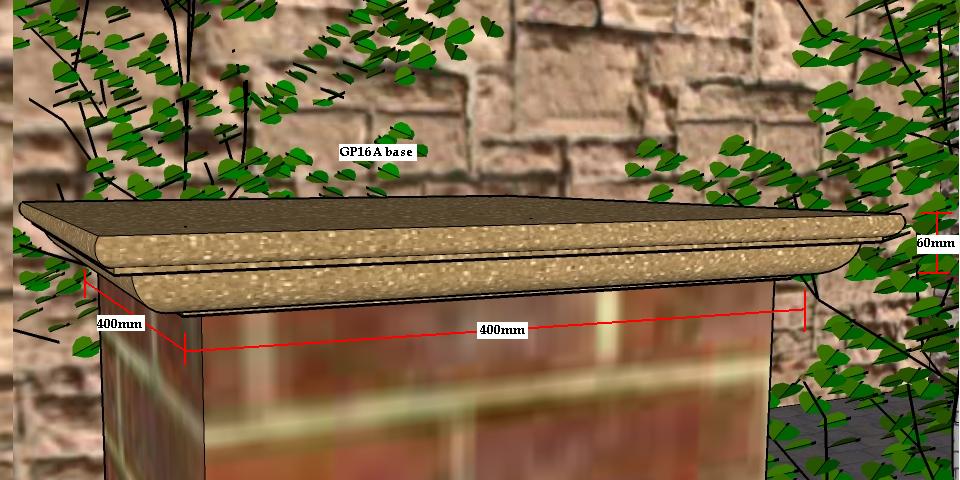

GP16A pier cap, 400mm x 400mm suitable for piers up to 380mm as the extended moulding to the side detail acts as the weather drip.

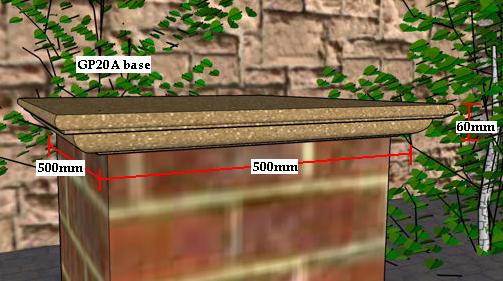

GP20A pier cap, 500mm x 500mm suitable for piers up to 480mm as the extended moulding to the side detail acts as the weather drip.

GP22A pier cap, 560mm x 560mm suitable for piers up to 540mm as the extended moulding to the side detail acts as the weather drip.

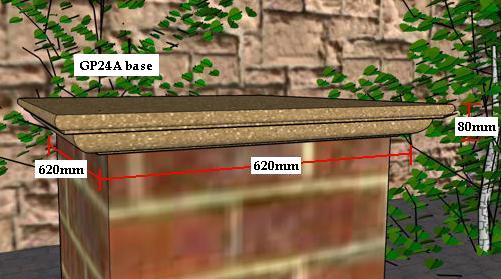

GP24A pier cap, 620mm x 620mm suitable for piers up to 600mm as the extended moulding to the side detail acts as the weather drip.

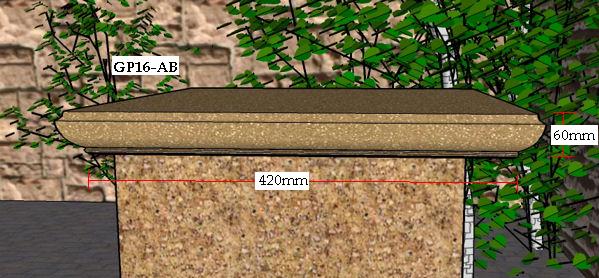

GP16-AB pier cap, 420mm x 420mm suitable for piers up to 400mm as the extended moulding to the side detail acts as the weather drip.

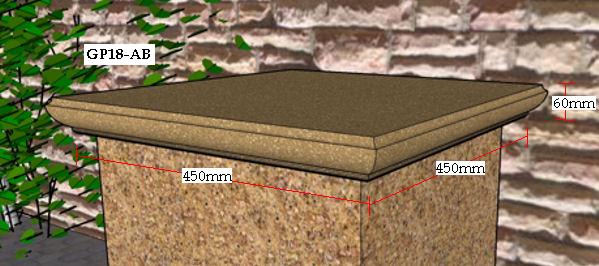

GP18-AB pier cap, 450mm x 450mm suitable for piers up to 430mm as the extended moulding to the side detail acts as the weather drip.

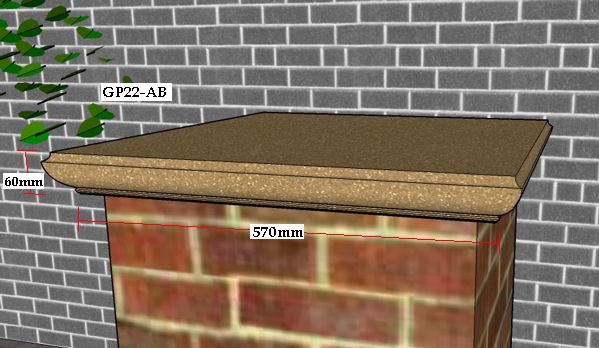

GP22-AB pier cap, 570mm x 570mm suitable for piers up to 550mm as the extended moulding to the side detail acts as the weather drip.

GP13B pier cap, 450mm x 450mm suitable for piers up to 430mm as the extended moulding to the side detail acts as the weather drip.

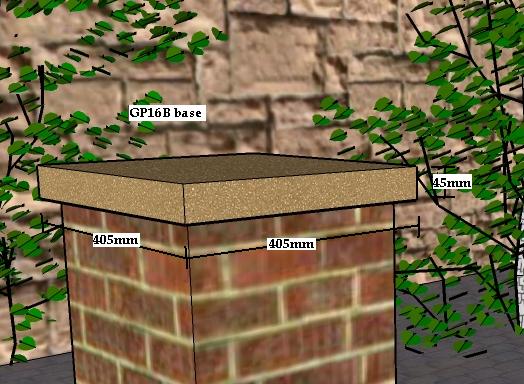

GP16B pier cap, 405mm x 405mm suitable for piers up to 355mm as the extended moulding to the side detail acts as the weather drip.

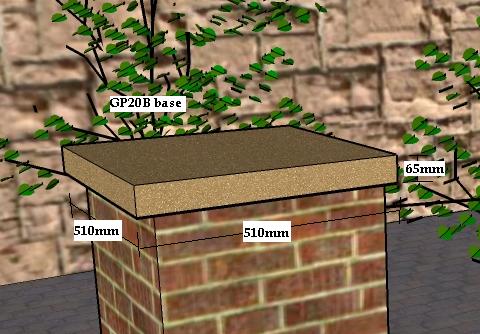

GP20B pier cap, 510mm x 510mm suitable for piers up to 460mm as the extended moulding to the side detail acts as the weather drip.

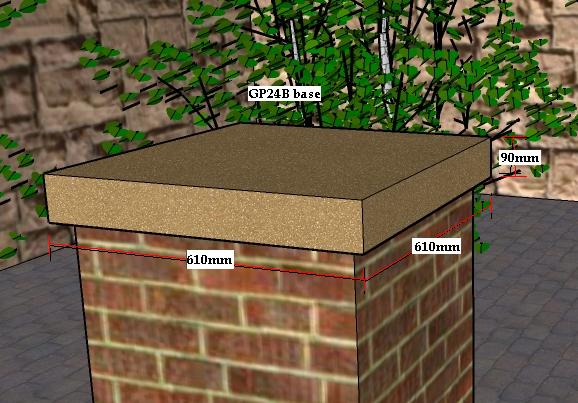

GP24B pier cap, 610mm x 610mm suitable for piers up to 560mm as the extended moulding to the side detail acts as the weather drip.

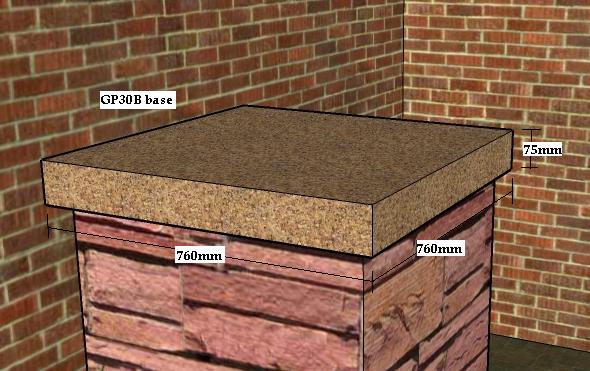

GP30B pier cap, 760mm x 760mm suitable for piers up to 710mm as the extended moulding to the side detail acts as the weather drip.

　



REP-VIC 1, 480mm x 480mm and suitable for pillars up to 440mm, this cap is a reproduction from an original and has a wethered pitted finish

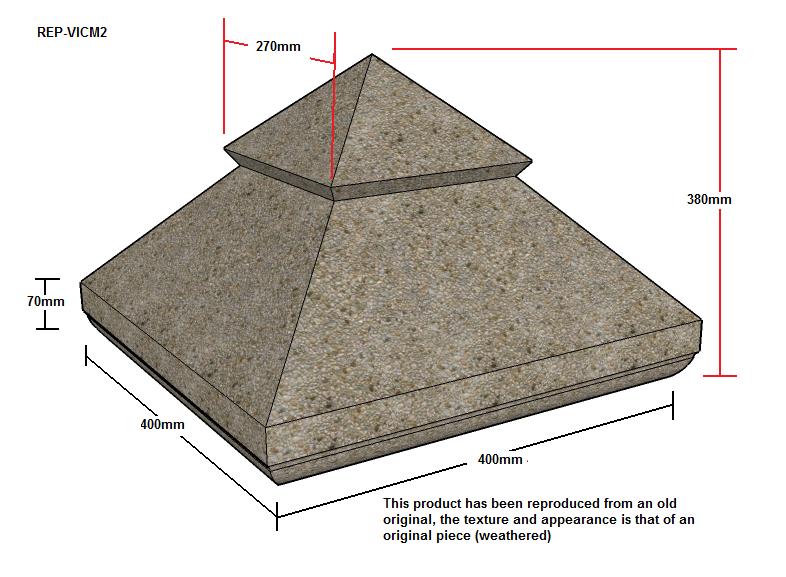

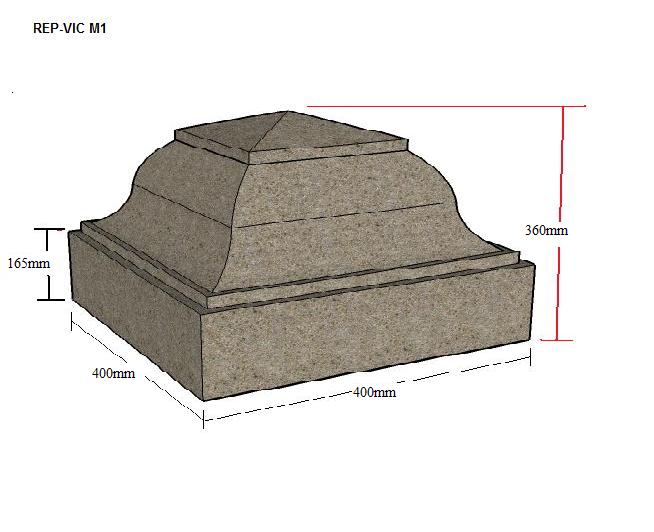

Rep-VIC M2, 400mm x 400mm and suitable for pillars up to 380mm, this cap is a reproduction from an original and has a wethered pitted finish

Rep-VIC M2, and suitable for pillars up to this cap is a reproduction from an original

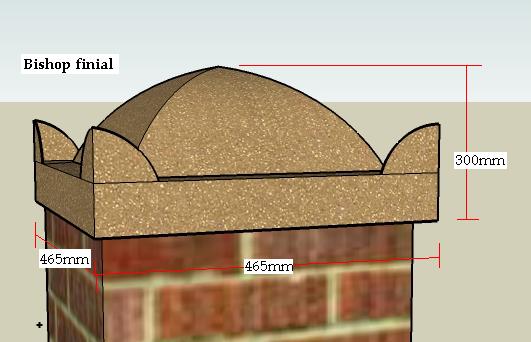

Bishop finial, 465mm x 465mm and suitable for pillars up to 415mm, the design is taken from an old 17th century pier cap design.



















                                                Rectangular pier caps

GP16-12BP Pyramid cap, 410mm x 305mm and suitable for piers 360mm x 255mm.

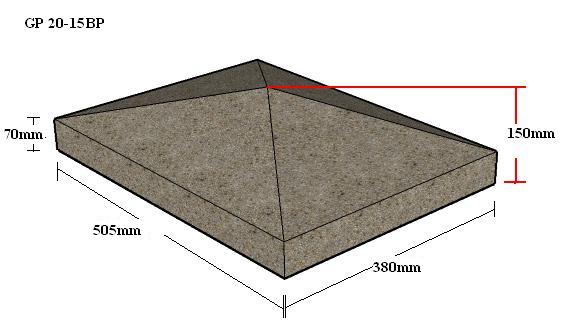

GP20-15BP Pyramid cap, 505mm x 380mm and suitable for piers 455mm x 330mm.

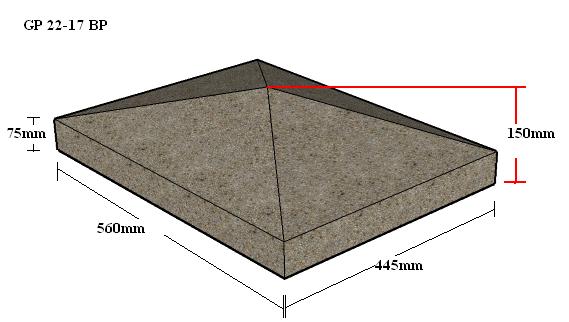

GP22-17BP Pyramid cap, 560mm x 445mm and suitable for piers 510mm x 395mm.

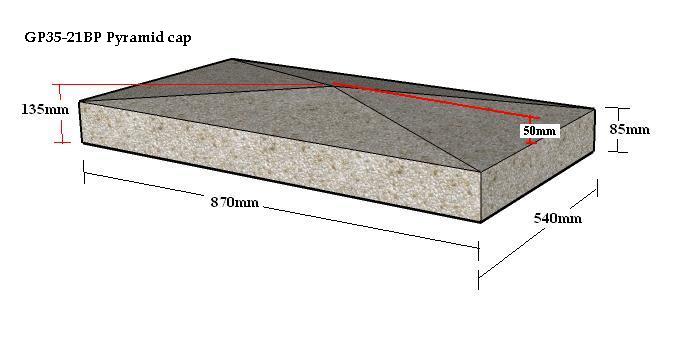

GP35-21BP Pyramid cap, 870mm x 540mm and suitable for piers 820mm x 490mm.

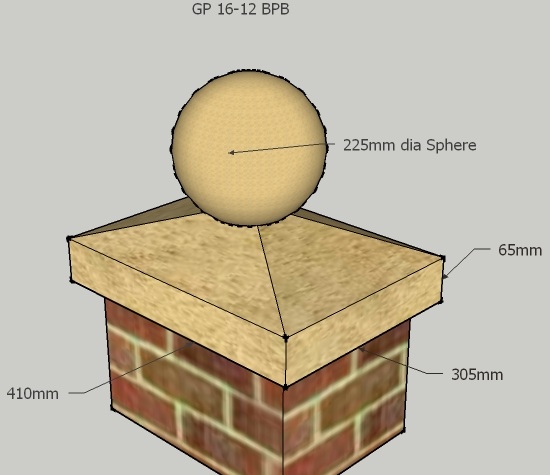

GP16-12BPB Pyramid cap, 410mm x 305mm with a 225mmdia sphere, suitable for piers 360mm x 255mm.

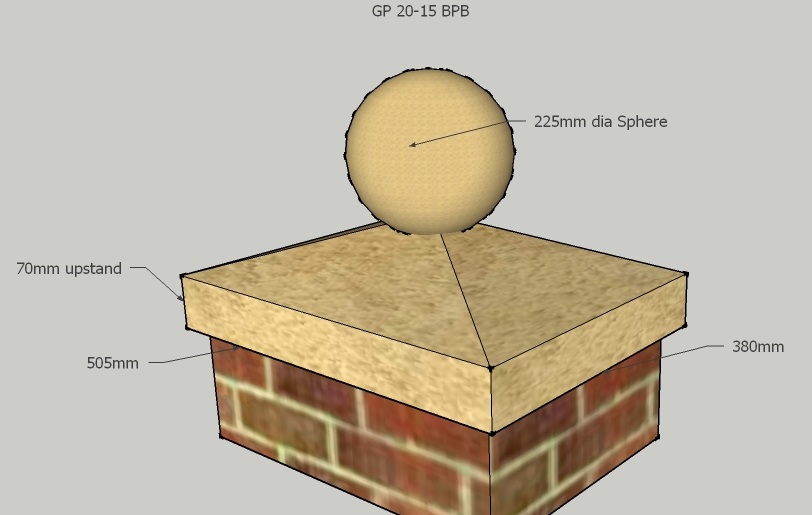

GP20-15BPB Pyramid cap with a 225mm dia ball, 505mm x 380mm and suitable for piers 455mm x 330mm.

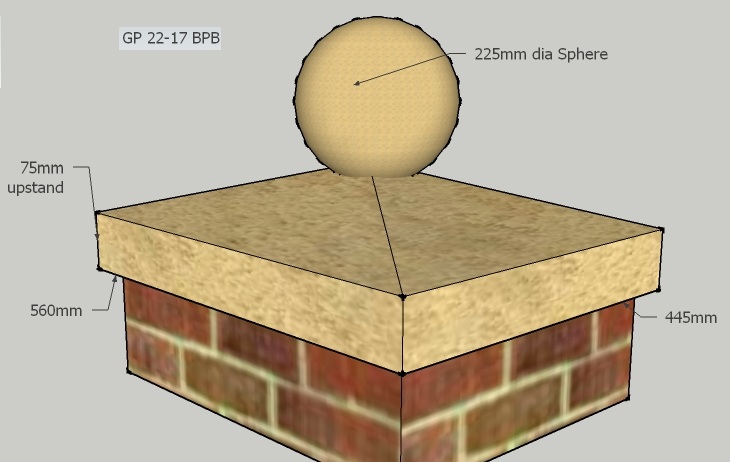

GP22-17BPB Pyramid cap with a 225mm dia ball, 560mm x 445mm and suitable for piers 510mm x 395mm.

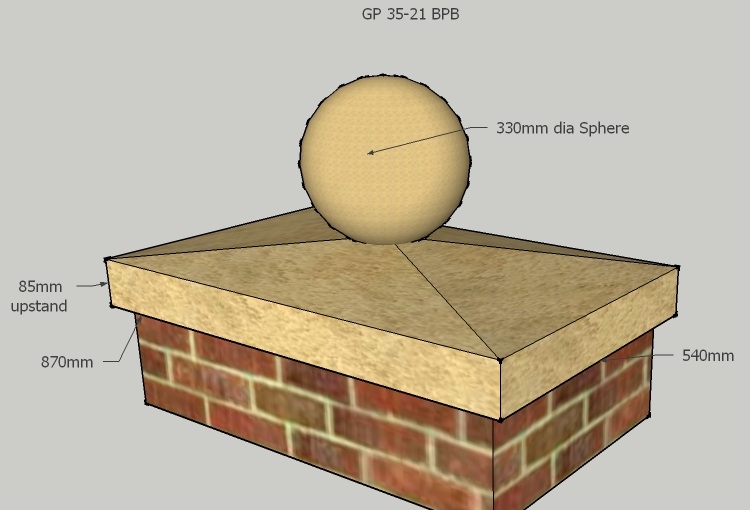

GP35-21BPB Pyramid cap with a 330mm dia phere, 870mm x 540mm and suitable for piers 820mm x 490mm.







                                        Traditional pier caps (reproductions)

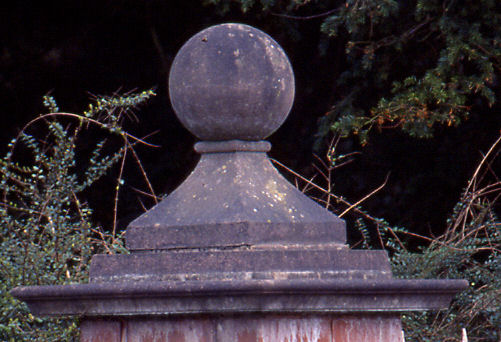

BFA on GP22A base, this is an aged red example of the two products combined.

BFD ball & collar on GP24BCM in a Bathstone finish.

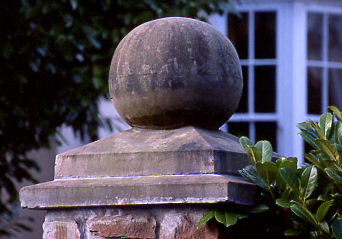

BFE on GP28 BC in an aged Gristone finish.

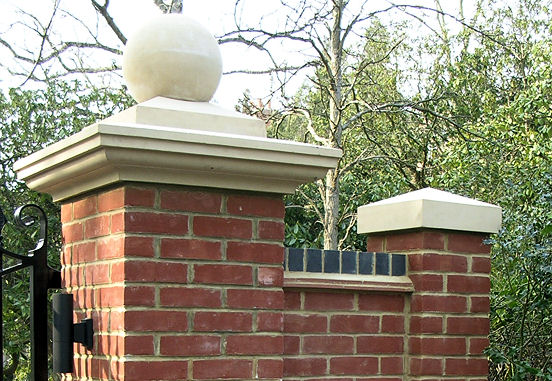

BFA & GP16B on GP31 BCM in a Bathstone finish .

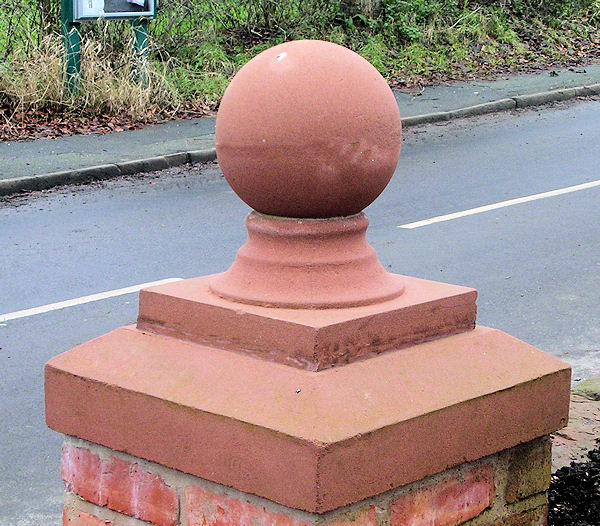

BFB on GP20BC base in a red sandstone finish.

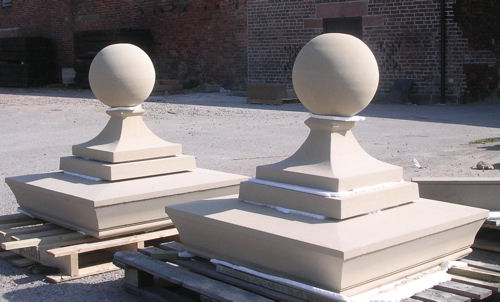

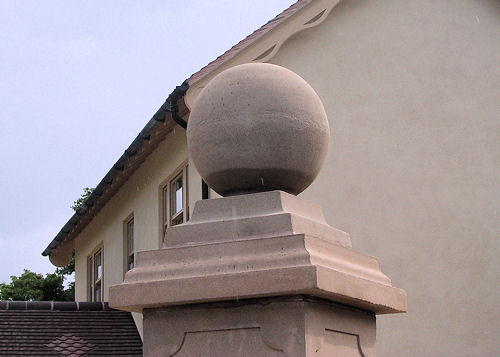

Bespoke ball finial in a Gritstone finish .

Bespoke finial in a Red sandstone finish

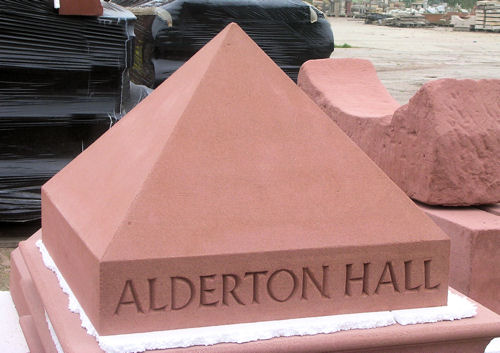

GP20 BPSP in a red sandstone finish with house name v-cut in to upstand.

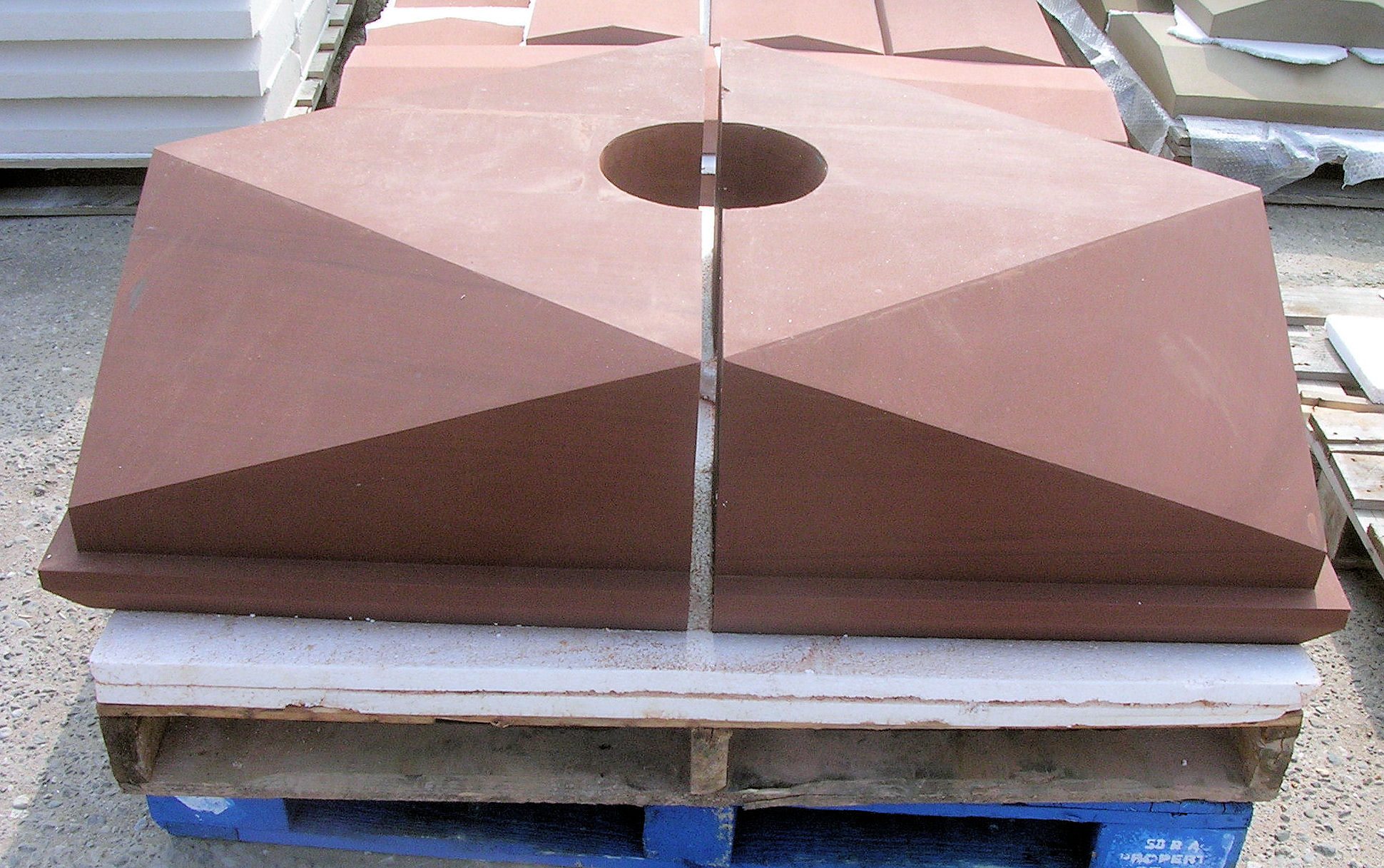

Large bespoke Chimney cap in a NATURAL red sandstone.

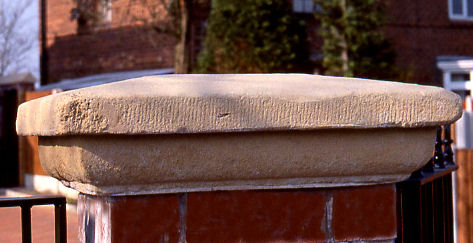

Bespoke pier cap in a bathstone finish, this pier cap was a reproduced from an original to match in with existing pier caps on a listed building.



















































































































































































































































































































































































































































































































NEW,

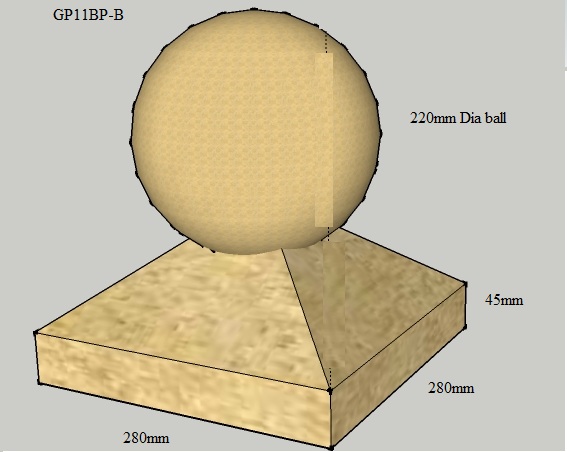

GP11BP-B ball and collar, 280 x 280mm suitable on a single brick pillar or on top of a pier caps as shown below.

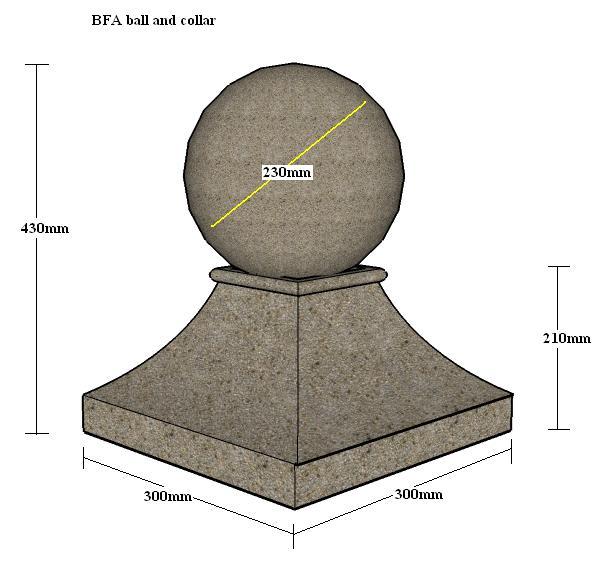

BFA ball and collar, 300 x 300mm suitable on a single brick pillar or on top of a pier caps as shown below.

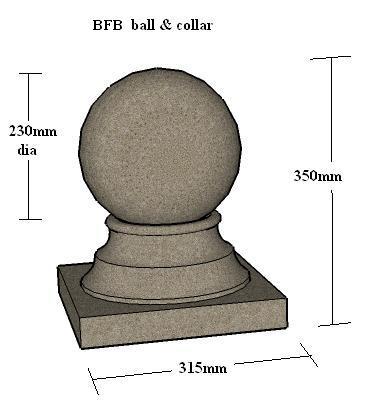

BFB ball and collar, 315 x 315mm suitable on a single brick pillar or up to 280 x 280mm or on top of a pier caps as shown below.

NEW

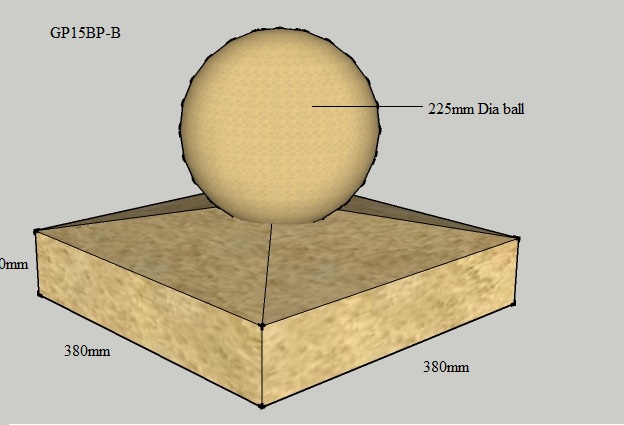

GP15BP-B ball and collar, 380 x 380mm with a 225mm dia ball suitable for pillars up to 330mm

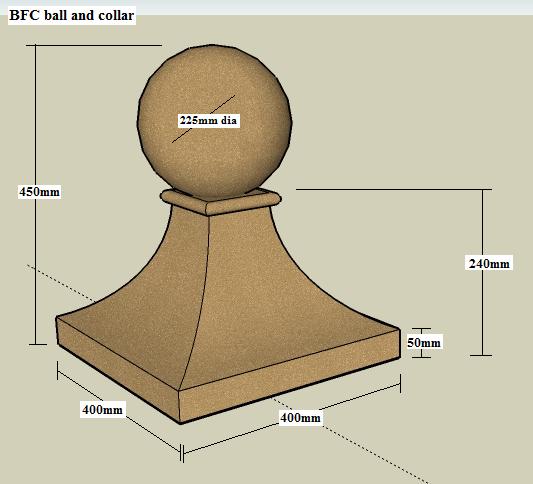

BFC ball and collar, 400 x 400mm suitable on a pillar up to 350 x 350mm or on top of a pier caps as shown below.

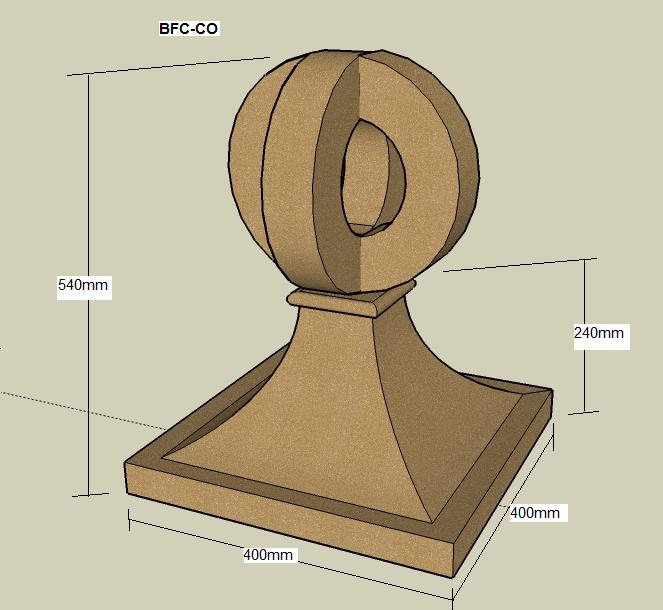

BFC-CO ball and collar, 400 x 400mm suitable on a pillar up to 350 x 350mm or on top of a pier caps as shown below.

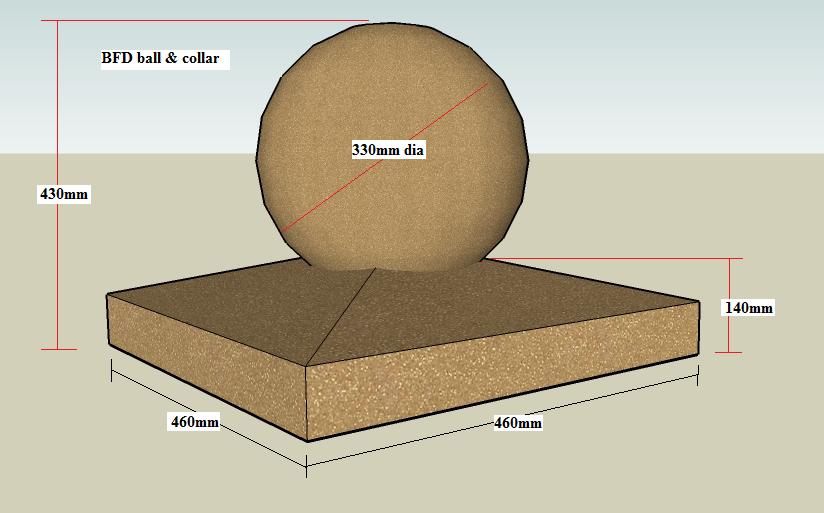

BFD ball and collar, 460 x 460mm suitable on a brick pillar up to 410 x 410mm or on top of a larger pier cap as shown below.

NEW

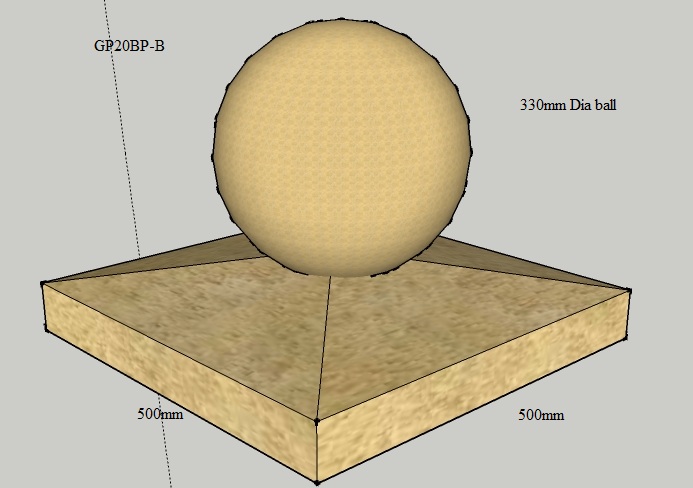

GP20BP-B ball and collar, 500 x 500mm with a 330mm dia ball and suitable for pillars up to 450mm square

NEW

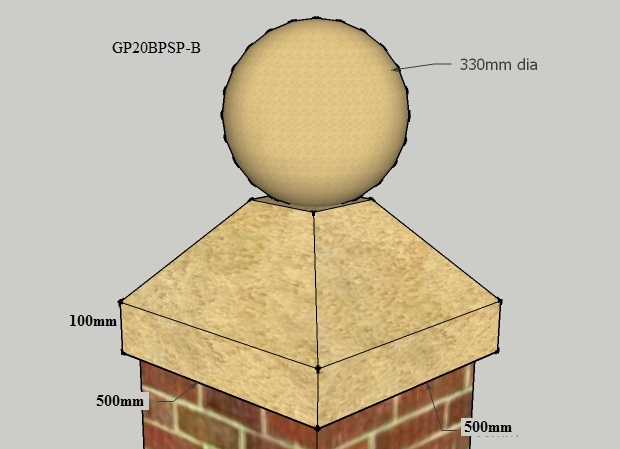

GP20BPSP-B ball and collar, 500 x 500mm with a 330mm dia ball and suitable for pillars up to 450mm square

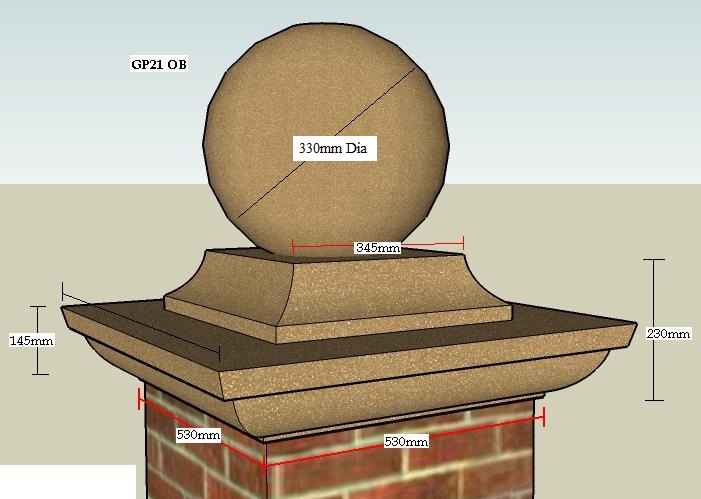

GP21 OB ball and collar, 530 x 530mm suitable for a pillar up to 510 x 510mm with 330mm dia ball

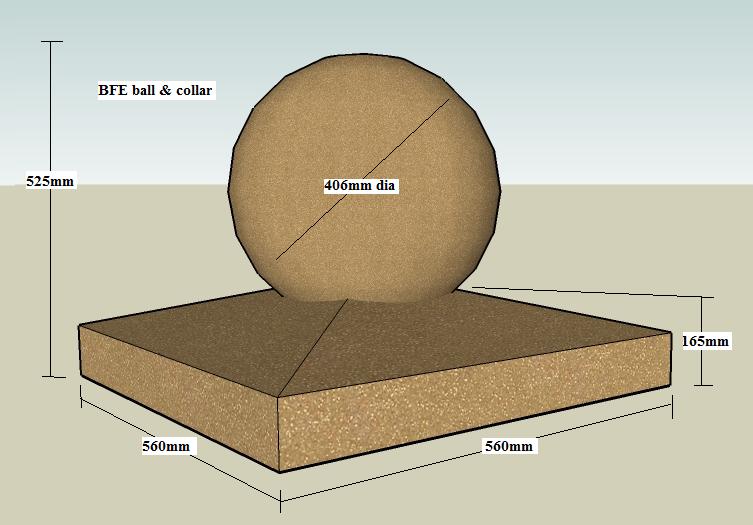

BFE ball and collar, 560 x 560mm suitable on a pillar up to 510 x 510mm or on top of a pier caps as shown below.

NEW

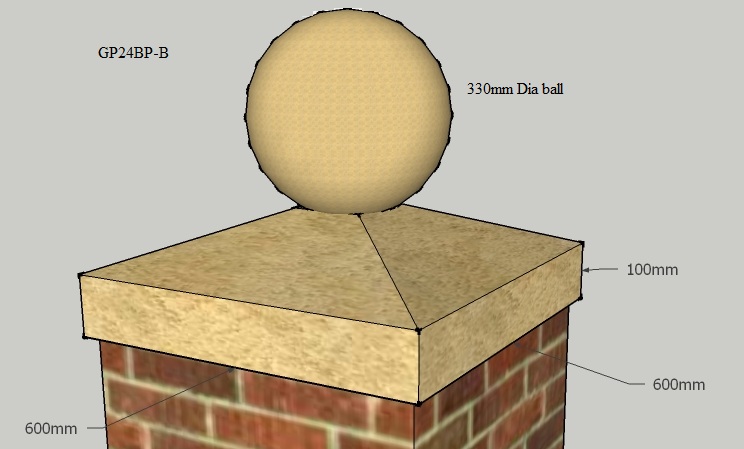

GP24BP-B ball and collar, 610 x 610mm with a 330mm dia ball and suitable for pillars up to 560mm square

NEW

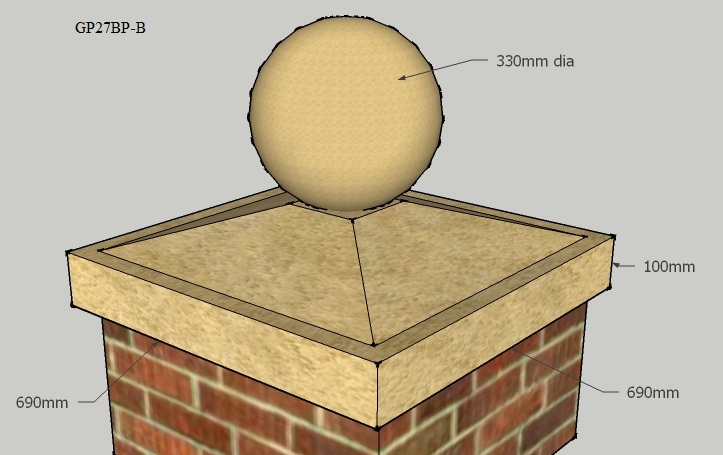

GP27BP-B ball and collar, 690 x 690mm with a 330mm dia ball and suitable for pillars up to 640mm square

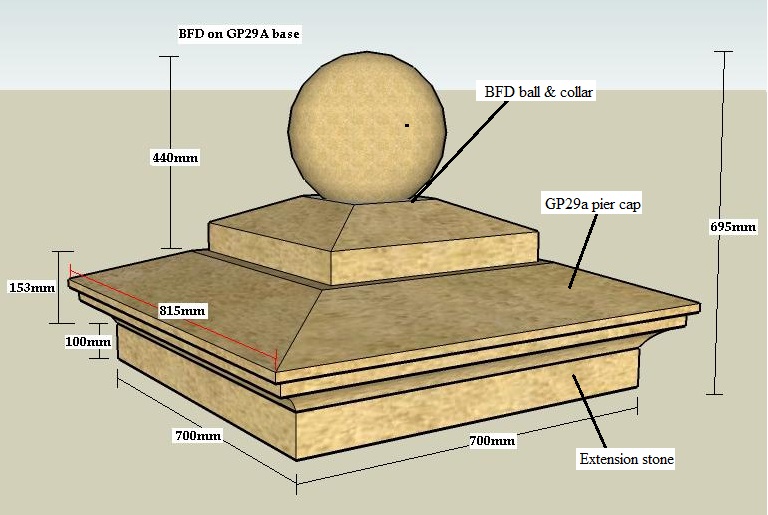

BFD on GP29a base, 700 x 700mm suitable on a pillar up to 680 x 680mm, Plinth stone (optional) also available to raise the finial by some 100mm.

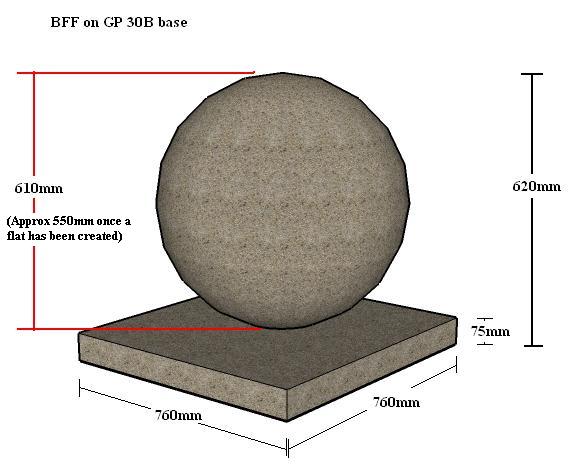

BFF on GP30b base, 760 x 760mm suitable on a pillar up to 710 x 710mm or on top of a pier caps as shown below.

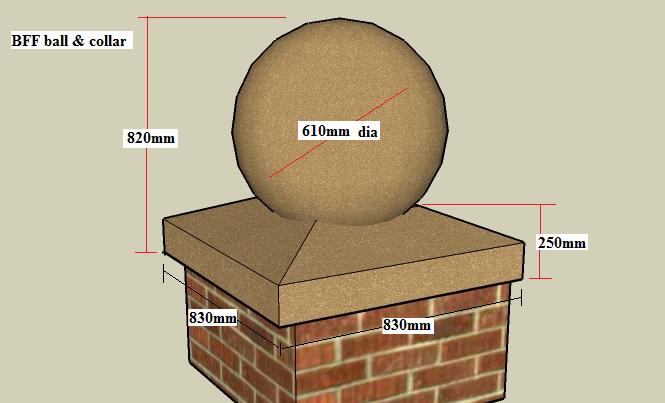

BFF ball and collar, 830 x 830mm suitable on a pillar up to 780 x 780mm.

NEW

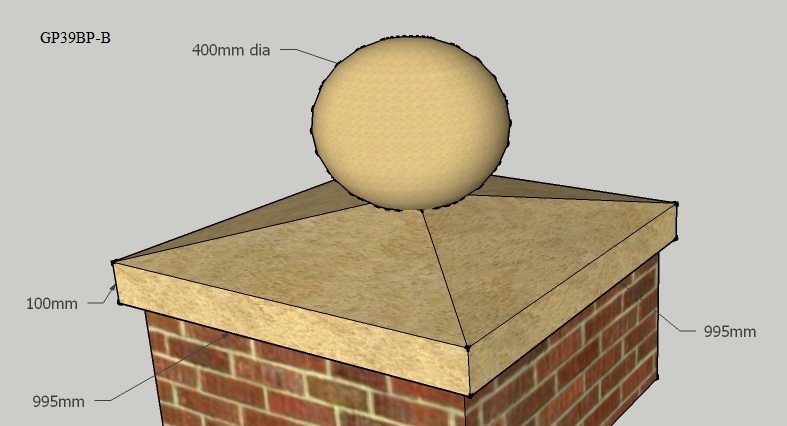

GP39BP-B ball and collar, 995 x 995mm with a 400mm dia ball and suitable for pillars up to 945mm square









































Planters & UrnsWater features & FountainsDrilled feature stonesSundials & birdbathsStatuary & garden ornamentsGarden benchesChinese lanternsOnline StoreColour finishesGarden brochure download











Company backgroundTerms & ConditionsProduct careColour finishesColour finishes

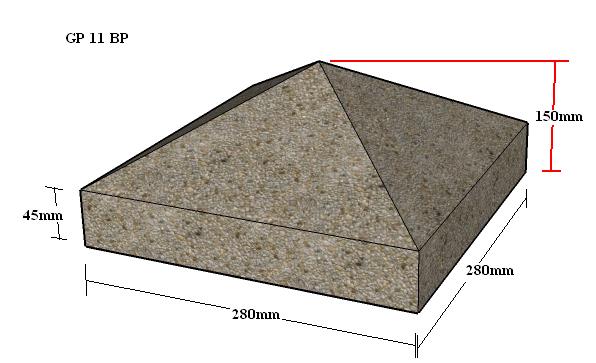

GP11 BP, Pyramid cap 280 x 280mm and suitable for pillars up to 230mm x 230mm allowing a 25mm overhang on each side

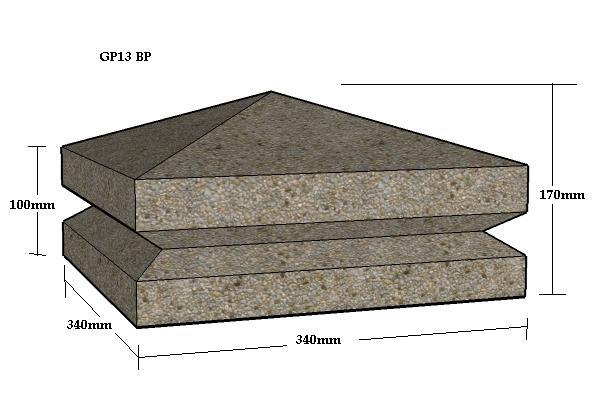

GP13 BP, Pyramid cap 340 x 340mm and suitable for pillars up to 280mm x 280mm allowing a 25mm overhang on each side

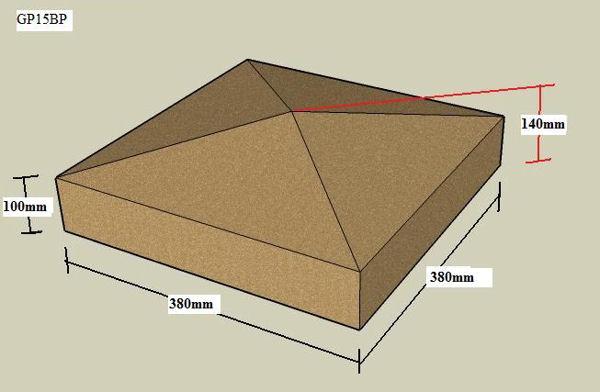

GP15 BP, Pyramid cap 380 x 380mm and suitable for pillars up to 330mm x 330mm allowing a 25mm overhang on each side

NEW

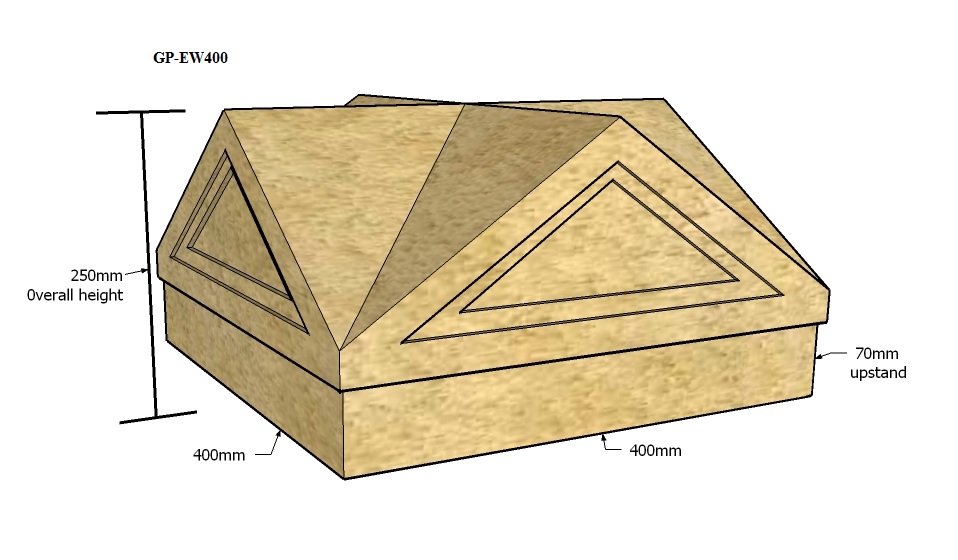

GP-EW400, 400 x 400mm square suitable for pillar up to 350mm, can also have your house name v-cut in to the upstand.

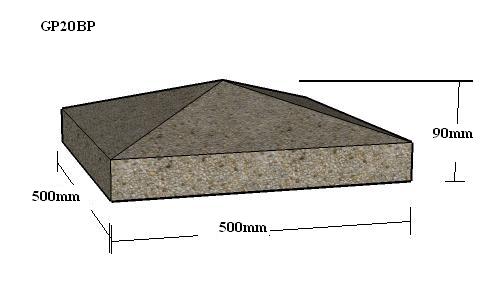

GP20 BP, Pyramid cap 500 x 500mm and suitable for pillars up to 450mm x 450mm allowing a 25mm overhang on each side

NEW

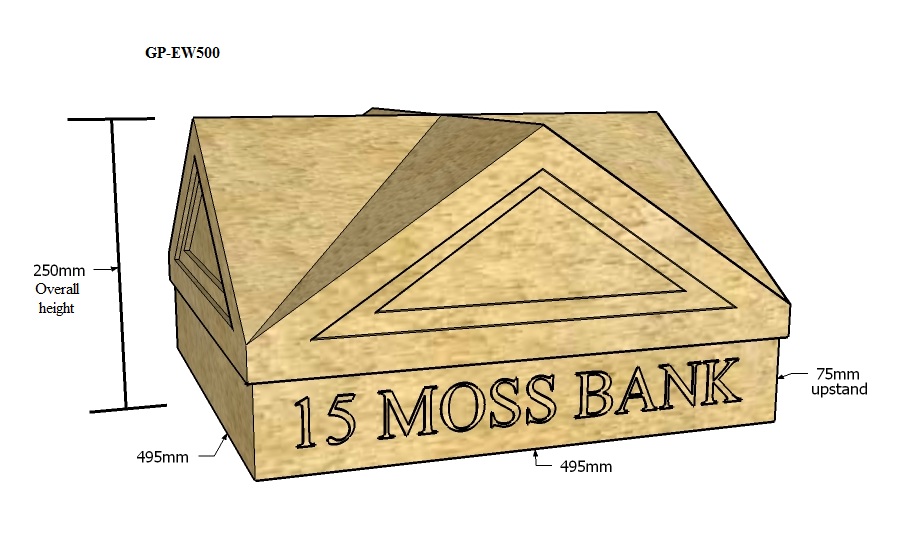

GP-EW500, a 495mm x 495mm square, suitable for pillar up to 450mm, can also have your house name v-cut in to the upstand

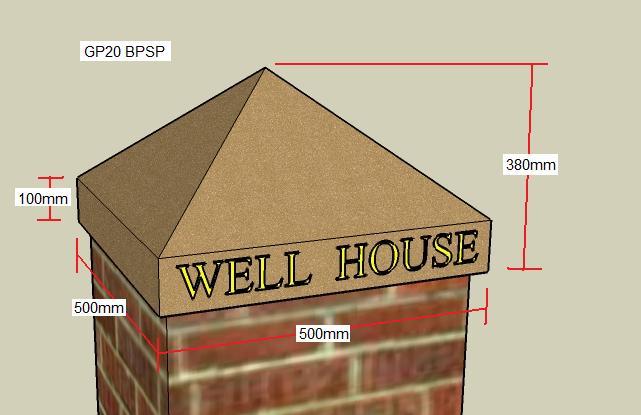

GP20 BPSP, steep pitched version of our standard Pyramid cap, this pic shows a house name v-cut in it, see the gallery below for photo

NEW

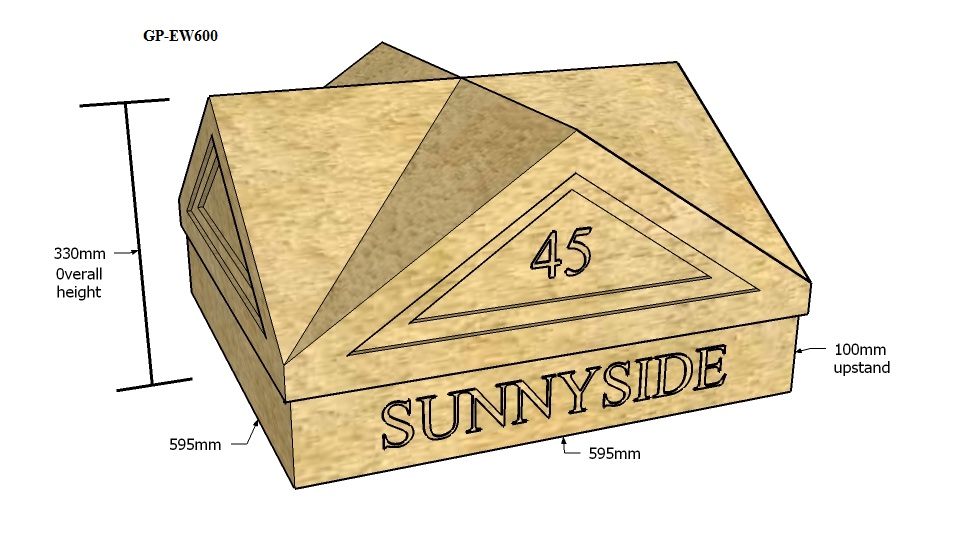

GP-EW600, 595mm x 595mm, suitable for pillar up to 550mm, can also have your house name v-cut in to the upstand as the picture shows

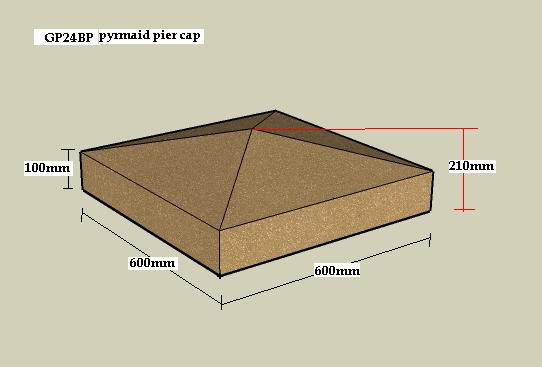

GP24 BP, Pyramid cap 600 x 600mm and suitable for pillars up to 550mm x 550mm allowing a 25mm overhang on each side

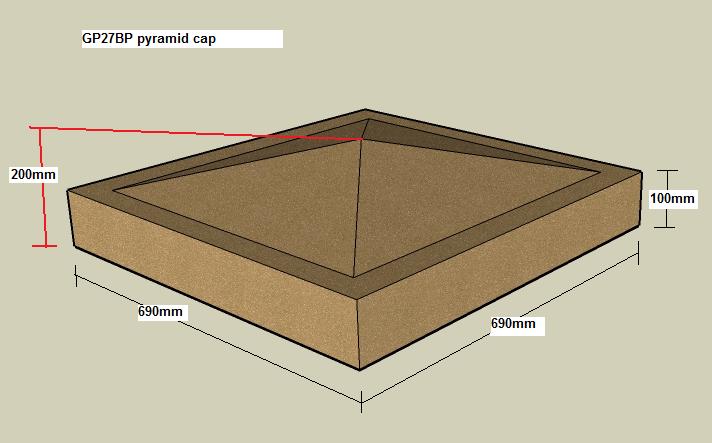

GP27 BP, Pyramid cap 690 x 690mm and suitable for pillars up to 640mm x 640mm allowing a 25mm overhang on each side

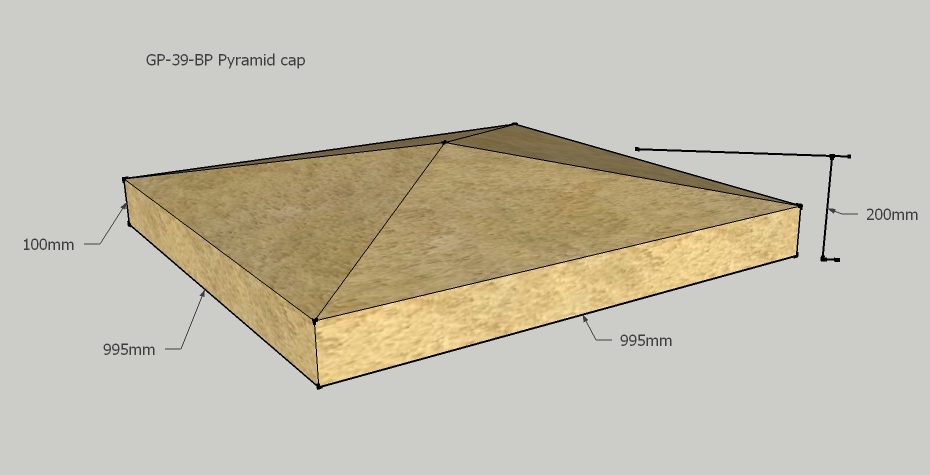

GP-39BP, a traditional pyramid pier cap at 995mm x 995mm, suitable for pillars up to 850mm, can also have your house name v-cut in to the upstand

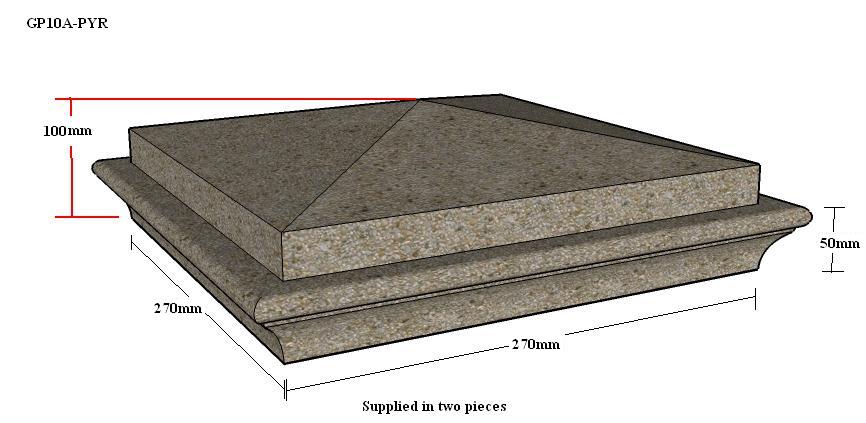

Gp 10A-pyr 270 x 270mm and is suitable for piers up to 260 x 260mm as the extended moulding to the side detail acts as the weather drip.

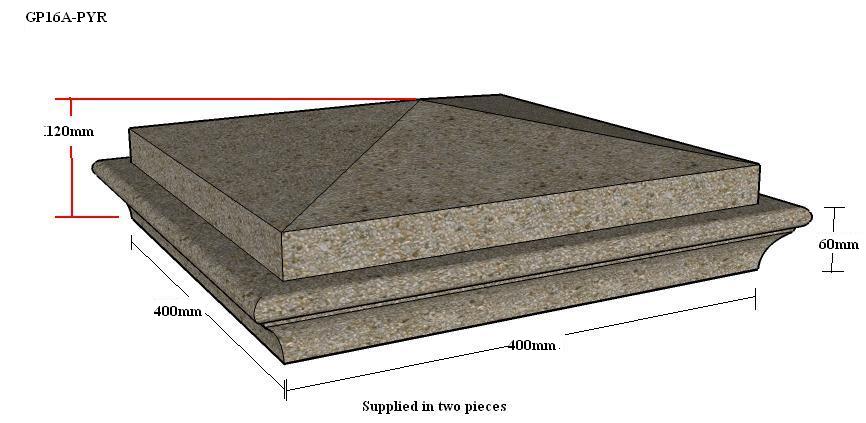

Gp 16A-pyr 400 x 400mm and is suitable for piers up to 390 x 390mm as the extended moulding to the side detail acts as the weather drip.

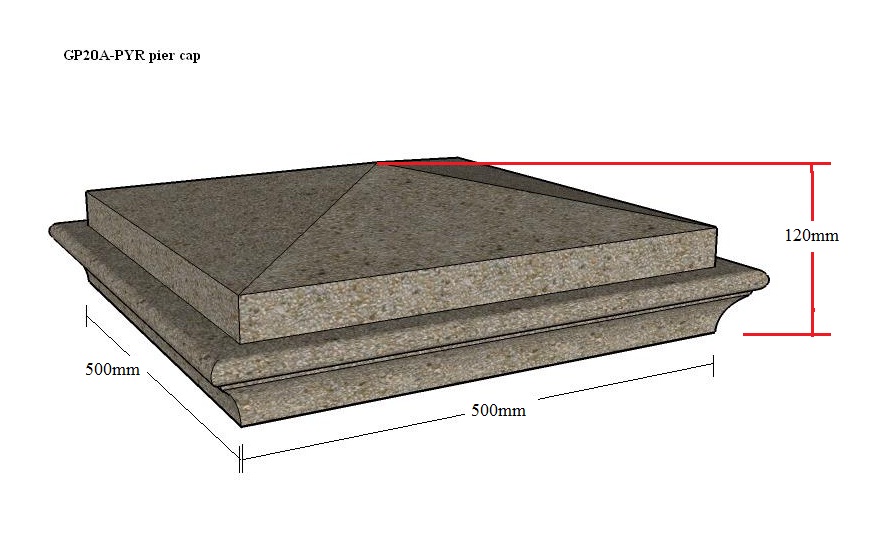

Gp 20A-pyr 500 x 500mm and is suitable for piers up to 490 x 490mm as the extended moulding to the side detail acts as the weather drip.

Gp 22A-pyr 560 x 560mm and is suitable for piers up to 550 x 550mm as the extended moulding to the side detail acts as the weather drip.

Gp 24A-pyr 620 x 620mm and is suitable for piers up to 610 x 610mm as the extended moulding to the side detail acts as the weather drip.

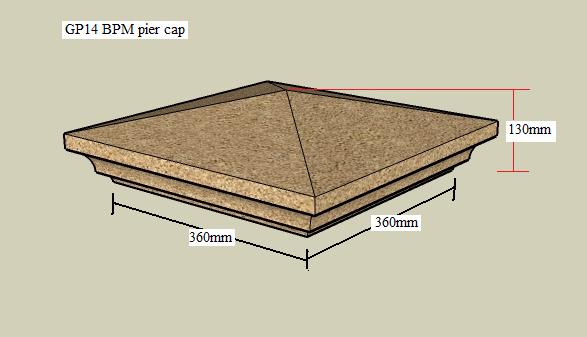

GP 14 BPM 360 x 360mm and is suitable for piers up to 350 x 350mm as the extended moulding to the side detail acts as the weather drip.

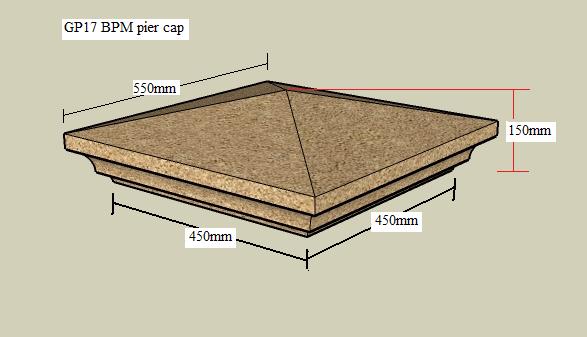

GP 17 BPM 450 x 450mm and is suitable for piers up to 440 x 440mm as the extended moulding to the side detail acts as the weather drip.

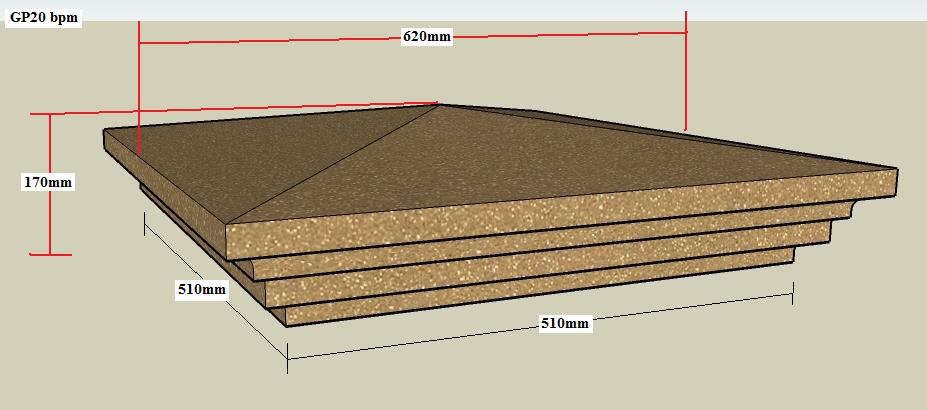

GP 20 BPM 510 x 510mm and is suitable for piers up to 500 x 500mm as the extended moulding to the side detail acts as the weather drip.

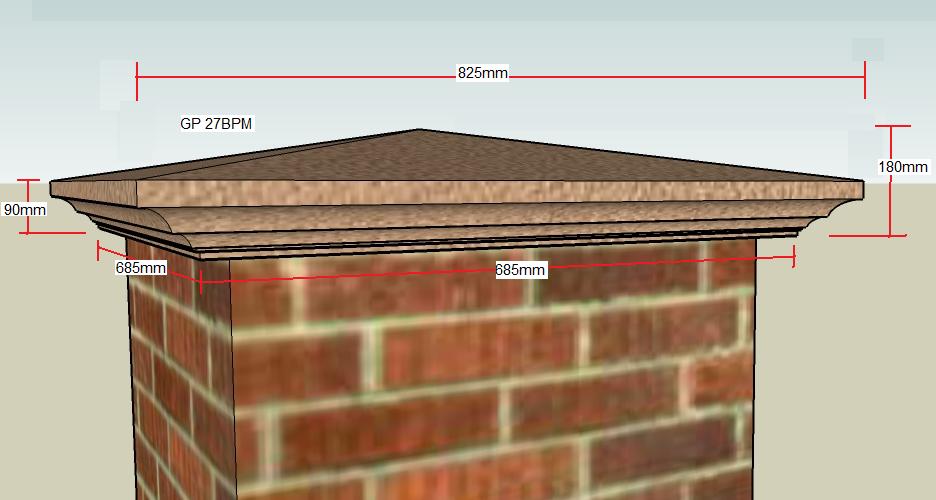

GP 27 BPM 685 x 685mm and is suitable for piers up to 670 x 670mm as the extended moulding to the side detail acts as the weather drip.





                                       Plain and moulded pyramid caps
